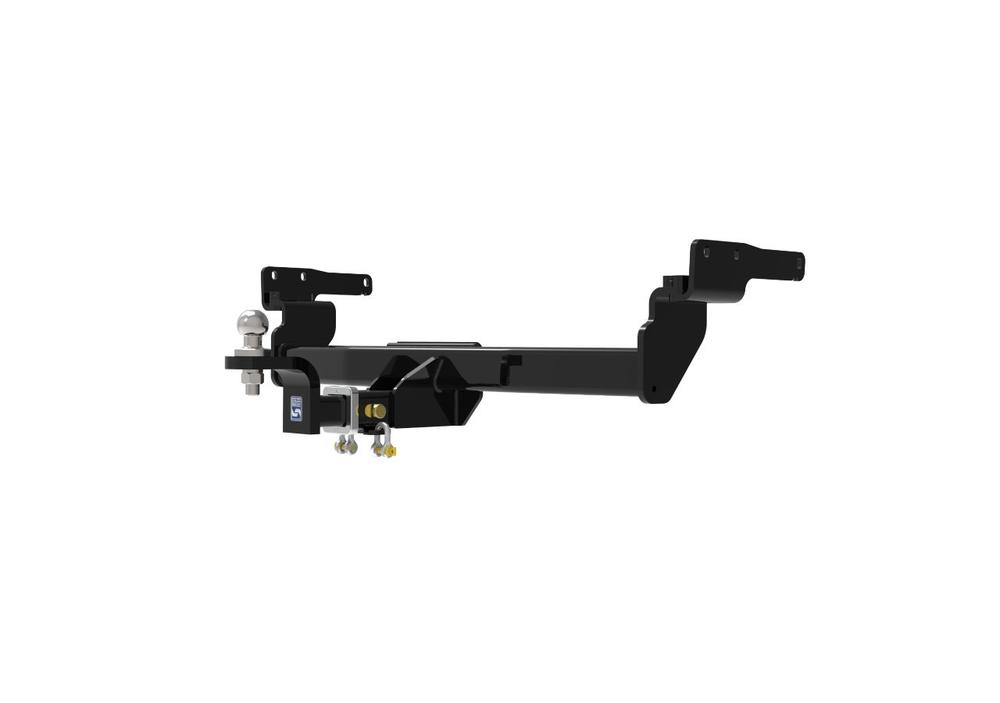

Supply & Install Full Towbar and Wiring Kit with 7 Pin Flat Socket to Suit Mitsubishi Outlander ZM (08/2021 Onwards)
With a towing capacity of 1600kg and a ball weight rating of 160kg, this heavy duty Class 4 towbar is designed for towing trailers, small caravans and light boats within the vehicle’s rated limits.
Featuring a 50x50mm square removable hitch, this towbar delivers strength and practicality for a wide range of towing applications.

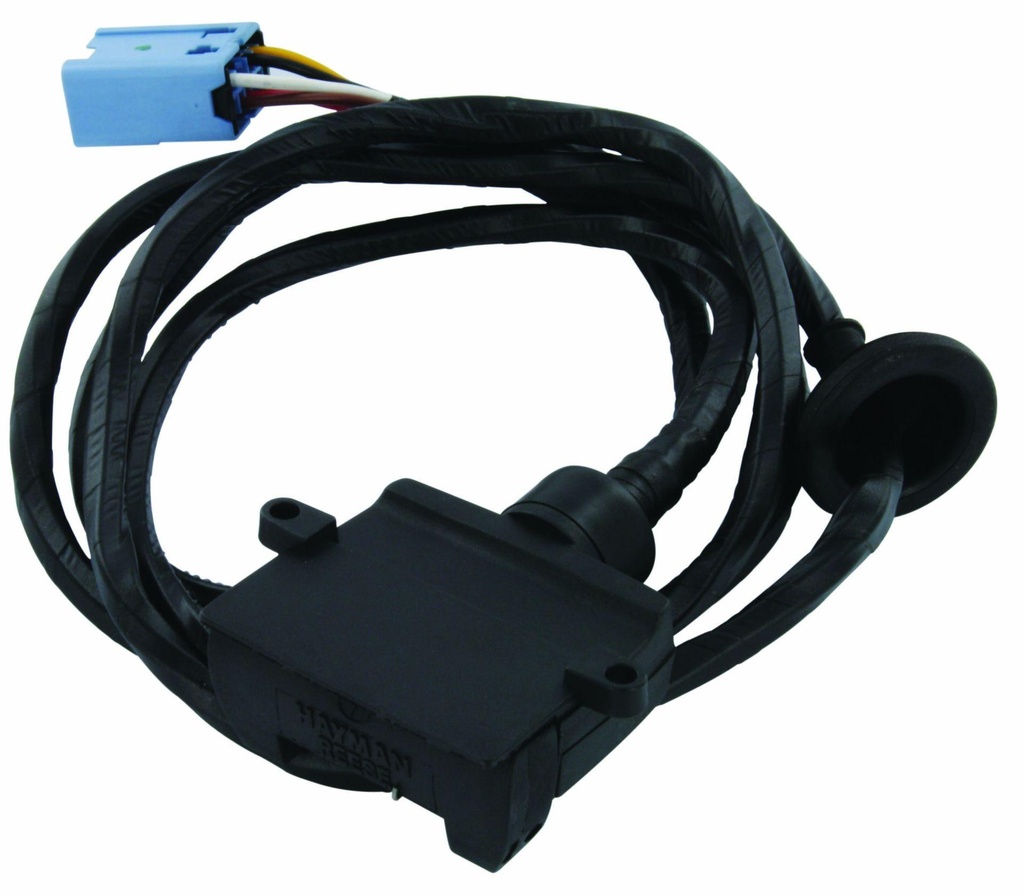

This package includes a removable Towball Mount (TBM) with 50mm towball, rated D shackles and Smart Pin, along with a full wiring kit fitted with a 7 Pin Flat socket.
Professional installation is included, ensuring correct fitment, safe operation and compliance with manufacturer specifications.
| Vehicle Make: MITSUBISHI |
| Vehicle Model: OUTLANDER |
| Series: ZM |
| Body: SUV |
| Category: Heavy Duty Towbars |
Made For

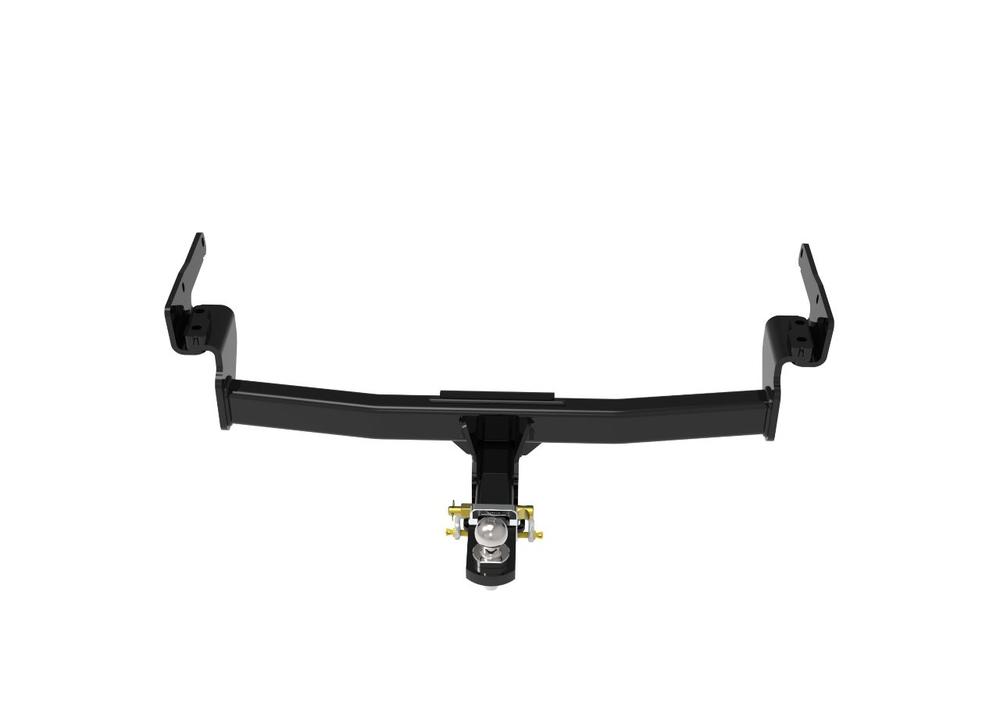

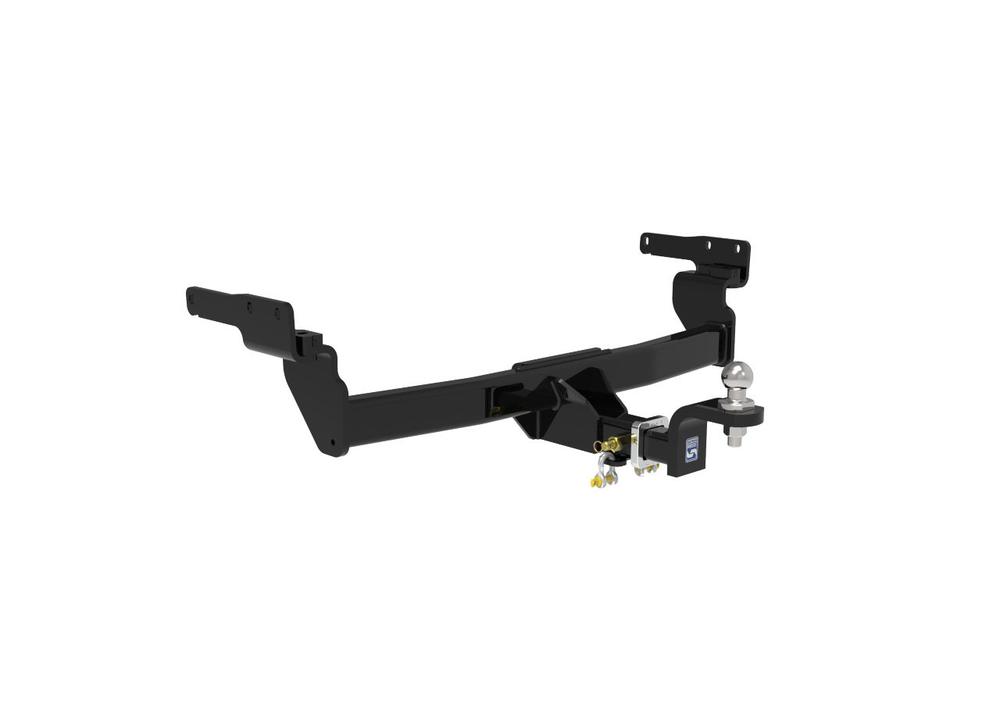

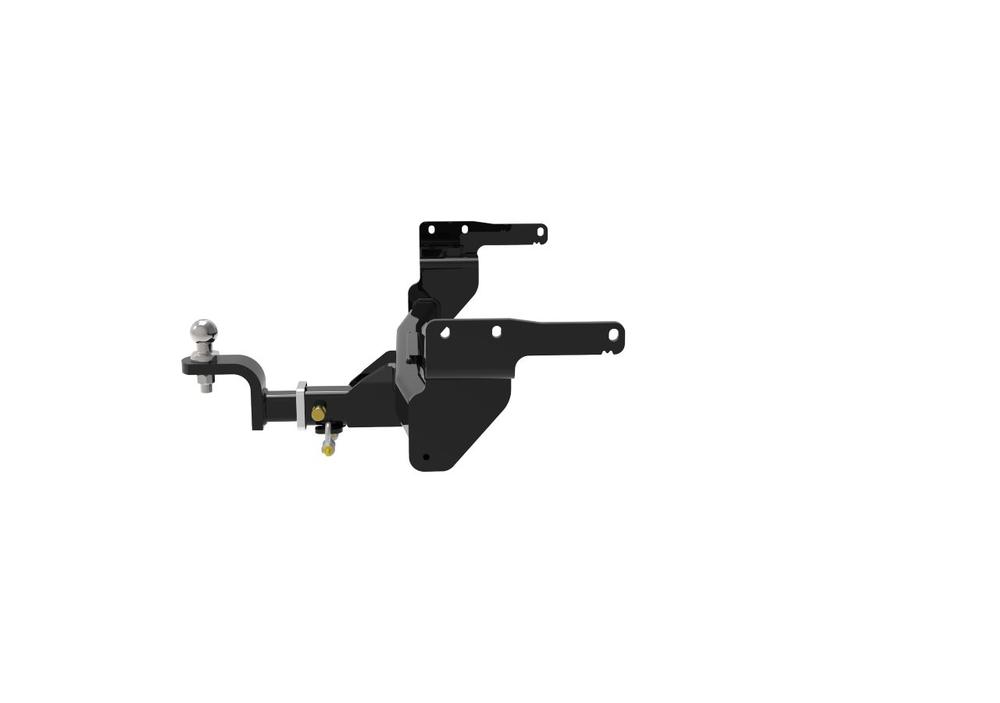

A Hayman Reese towbar is a high-quality upgrade to your vehicle that allows you to tow caravans, trailers, boats and more with maximum safety. This towbar (Part Number:03414RW) is designed to fit perfectly with your Mitsubishi Outlander (11/2021 on) and tested to meet Australian ADR standards. With Hayman Reese towbars you can be assured that you’re getting the maximum towing capabilities and safety on your travels.
What Can It Tow?
The Mitsubishi Outlander (11/2021 on) heavy duty (Class 4) towbar has a towing capacity of 1600kg with a ball weight of 160kg this towbar is specifically designed for towing caravans, large trailers, boats or horse floats. Ensure that when carrying bike racks and other items with vertical force on the towbar that you check the owners handbook for weight limits.
How Will My Towbar Look?
This towbar has a black powdercoat finish and a concealed design which hides the majority of the bar from view, with only a hitch receiver visible. The hitch receiver is a standard 50mm square receiver, with chrome hitch collar and comes standard with a removable Towball Mount (TBM), 50mm towball and rated D-shackles. When you’re not towing, simply remove the retaining clip and hitch pin and the Trailer Ball Mount slides straight out.
Safe Towing
Hayman Reese towbars are designed to be compatible with Weight Distribution systems, used to safely tow Caravans and large loads, along with hitch mounted accessories such as bike racks and platforms. They come standard with a towball but also work with a DO35 Pin and off-road coupling.
Superior Construction
Hayman Reese towbars are designed to maximise towing ability. The 03414RW Heavy Duty (Class 4) towbar has been designed using advanced FEA (Finite Element Analysis) technology and tested in a dedicated NATA accredited Laboratory at Hayman Reese’s Melbourne Production Facility. This gives us the confidence to provide a lifetime warranty on the towbar for you as the original owner. Whether you’re taking a caravan around Australia, going on a camping trip, a fishing adventure, a family holiday or need to tow for work, we'll keep you connected and help you get there safely.
| Towbar Rating | 1600 kg |
| Ball Weight | 160 kg |
| Bumper Cut | Yes |
| Product Weight | 34.6 kg |
| SmartCode Compatible | Yes |
| Installation Required | Yes |
| Finish | Powder coated |
| Notes | Use tail 04943 to automatically disable Reverse Park Assist (RPA) where fitted. |
| Colour | black |
| Hitch Type | 50mm square hitch receiver |
| Exposed/Concealed Fitment | Concealed |
| Lug | 21232 |
| Fitting Difficulty | Specialist Installer |
