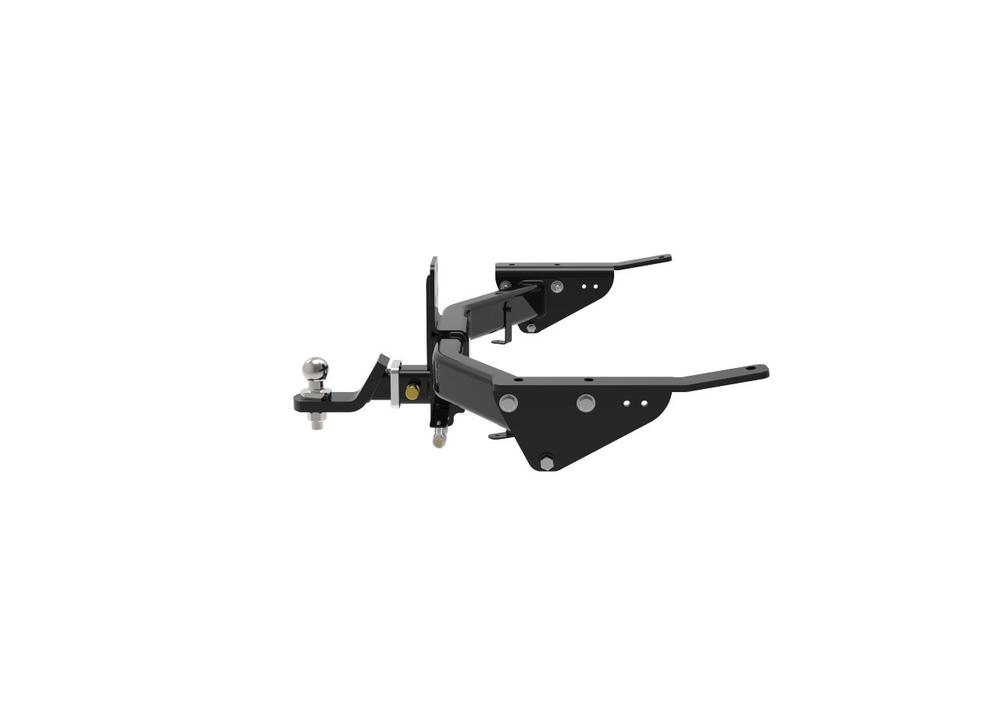

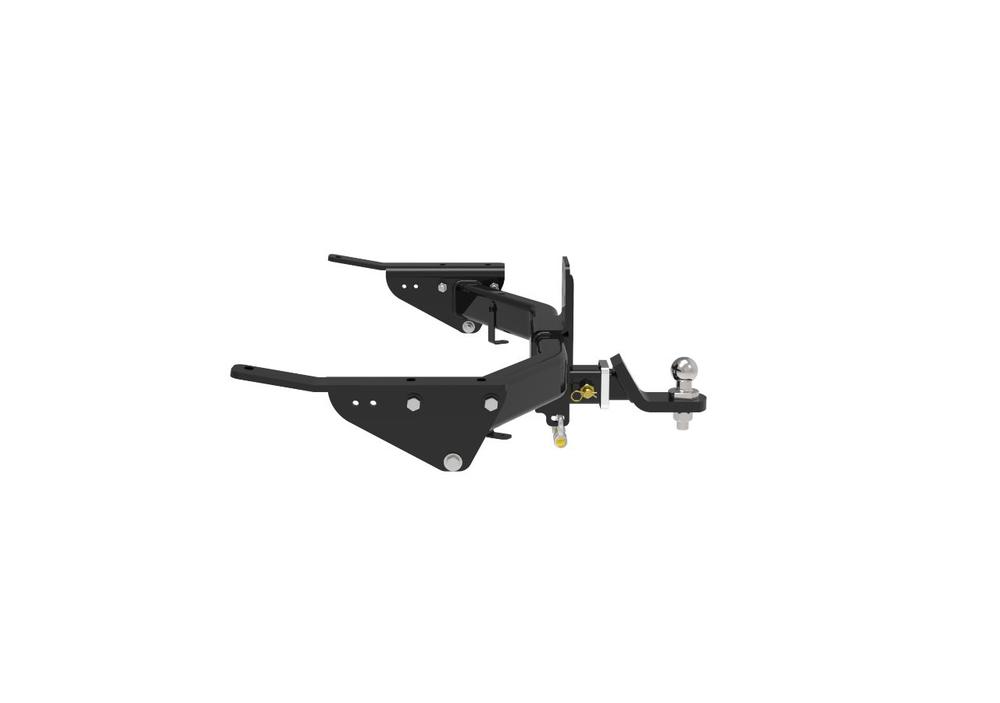

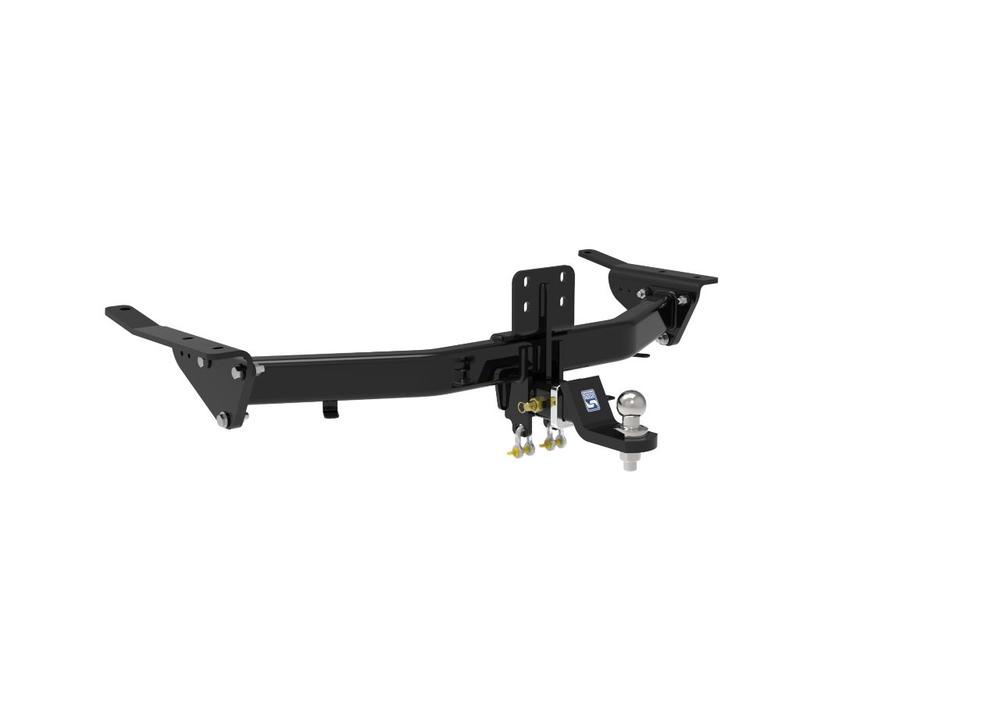

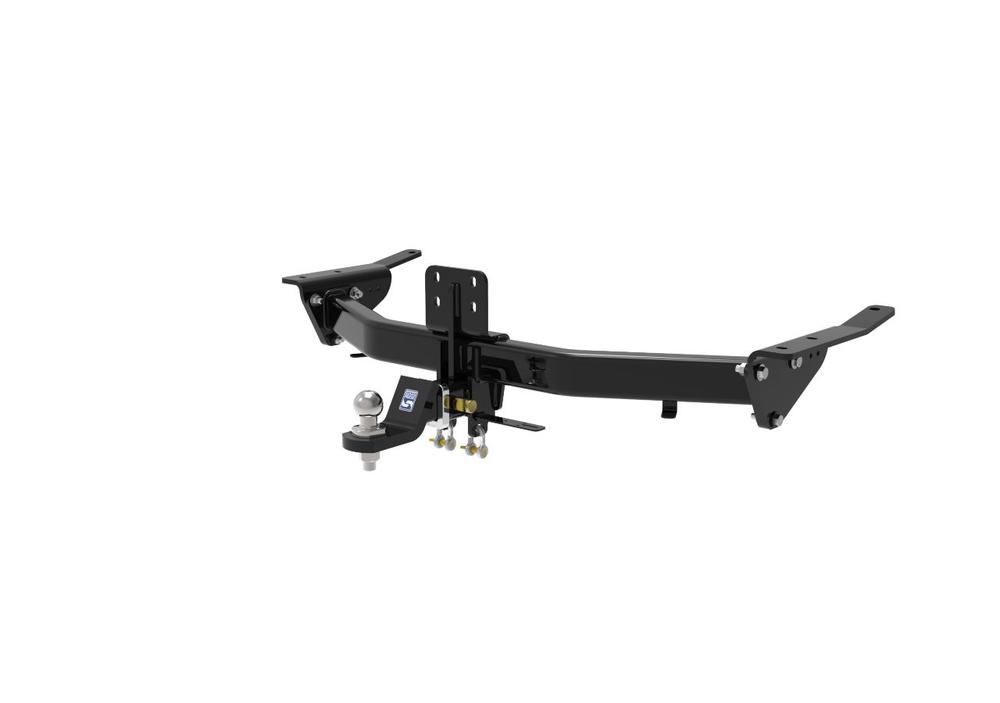

Nissan Patrol Y62 Series 5 Wagon (08/2019 Onwards) Heavy Duty Class 4 Towbar – 50x50mm Square Removable Hitch – 3500kg/350kg
With a tow capacity of 3500kg and a ball weight of 350kg this towbar is specifically designed for towing caravans, large trailers, boats or horse floats. This towbar has a concealed design and requires a bumper cut. The towbar has a removable Towball Mount (TBM) with 50mm towball, rated D-shackles and Smart Pin all included.
| Vehicle Make: NISSAN |
| Vehicle Model: PATROL |
| Series: Y62 |
| Body: SUV |
| Variant: SERIES 5 |
| Category: Heavy Duty Towbars |
Made For
A Hayman Reese towbar is a high-quality upgrade to your vehicle that allows you to tow caravans, trailers, boats and more with maximum safety. This towbar is designed to fit perfectly with your Nissan Patrol Y62 Series 5 (8/2019 Onwards) and tested to meet Australian ADR standards. With Hayman Reese towbars you can be assured that you’re getting the maximum towing capabilities and safety on your travels.
What Can It Tow?
The Nissan Patrol Y62 Series 5 (8/2019 on) heavy duty (Class 4) towbar has a towing capacity of 3500kg with a ball weight of 350kg this towbar is specifically designed for towing caravans, large trailers, boats or horse floats.
How Will My Towbar Look?
This towbar has a black powdercoat finish and a concealed design which hides the majority of the bar from view, with only a hitch receiver visible. The hitch receiver is a standard 50mm square receiver, with chrome hitch collar and comes standard with a removable Towball Mount (TBM), 50mm towball and rated D-shackles. When you’re not towing, simply remove the retaining clip and hitch pin and the Trailer Ball Mount slides straight out.
Safe Towing
Hayman Reese towbars are designed to be compatible with Weight Distribution systems, used to safely tow Caravans and large loads, along with hitch mounted accessories such as bike racks and platforms. They come standard with a towball but also work with off-road couplinga.
Superior Construction
Hayman Reese towbars are designed to maximise towing ability. This towbar has been designed using advanced FEA (Finite Element Analysis) technology and tested in a dedicated NATA accredited Laboratory at Hayman Reese’s Melbourne Production Facility. This gives us the confidence to provide a lifetime warranty on the towbar for you as the original owner. Whether you’re taking a caravan around Australia, going on a camping trip, a fishing adventure, a family holiday or need to tow for work, we'll keep you connected and help you get there safely.
| Towbar Rating | 3500 kg |
| Ball Weight | 350 kg |
| Bumper Cut | Yes |
| Product Weight | 32.9 kg |
| SmartCode Compatible | Yes |
| Installation Required | Yes |
| Finish | Powder coated |
| Notes | RPA is disabled by pressing “Pmod” on infotainment screen. |
| Colour | Black |
| Hitch Type | 50mm square hitch receiver |
| Exposed/Concealed Fitment | Concealed |
| Fitting Difficulty | Specialist Installer |
